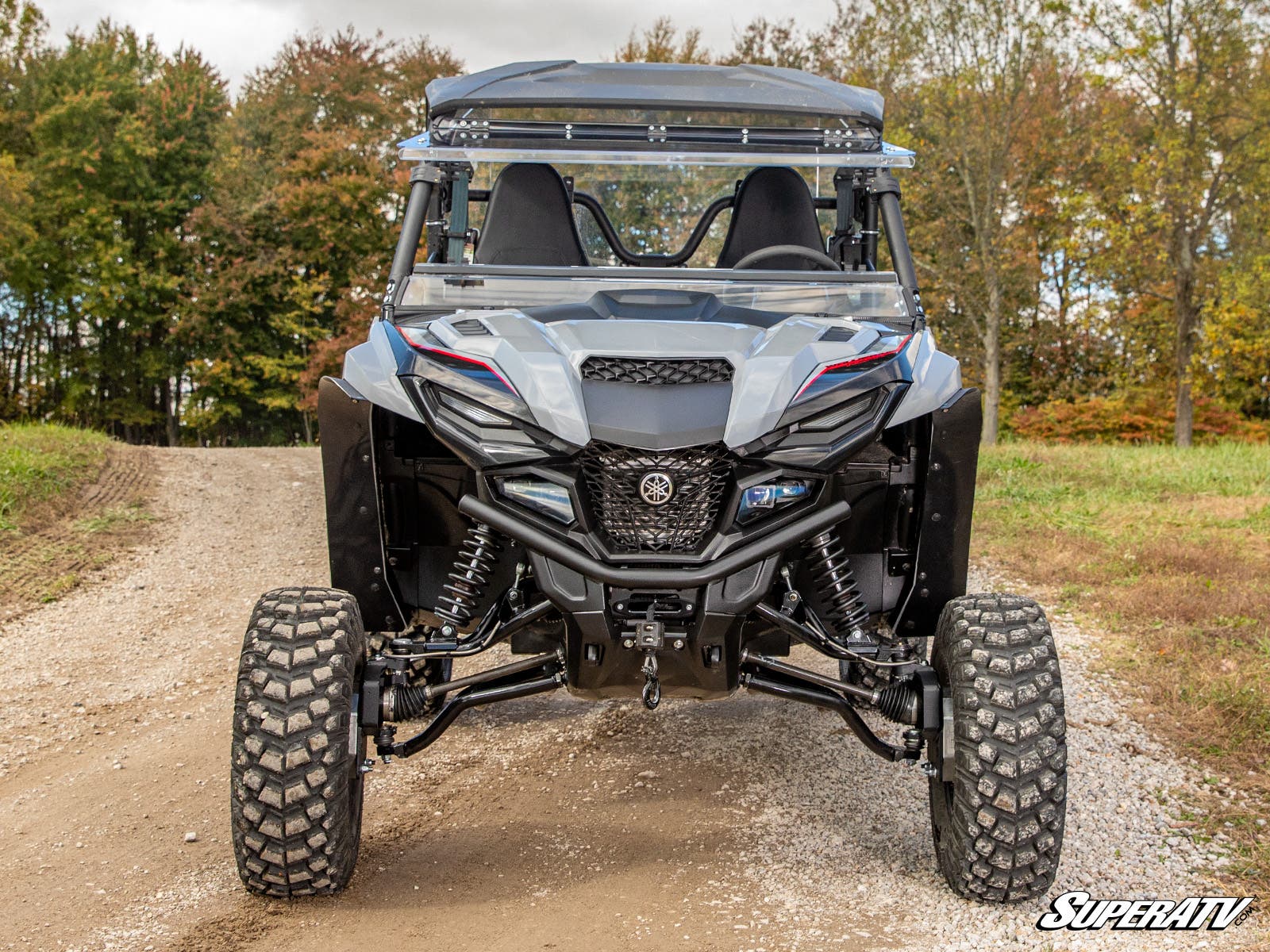

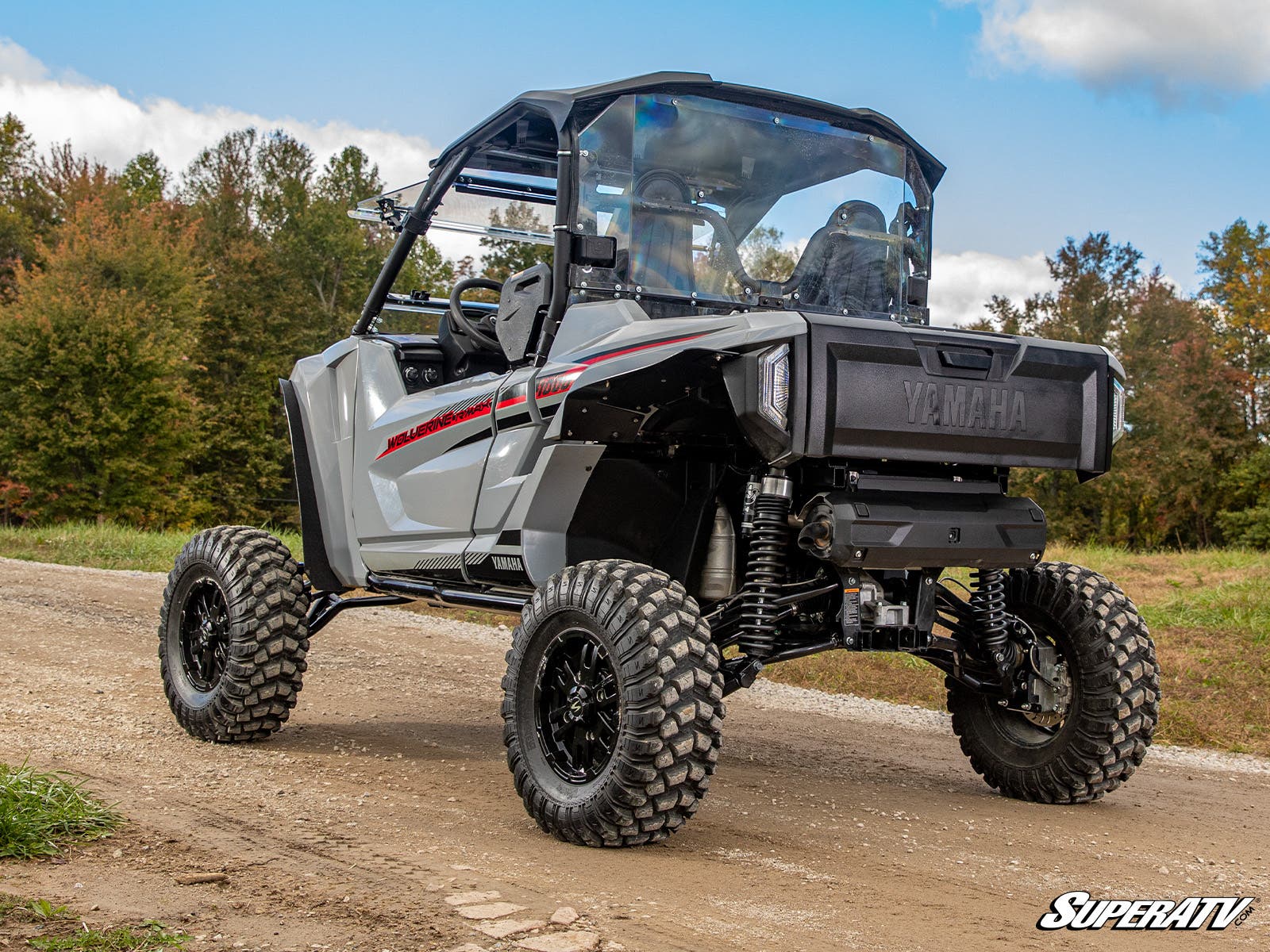

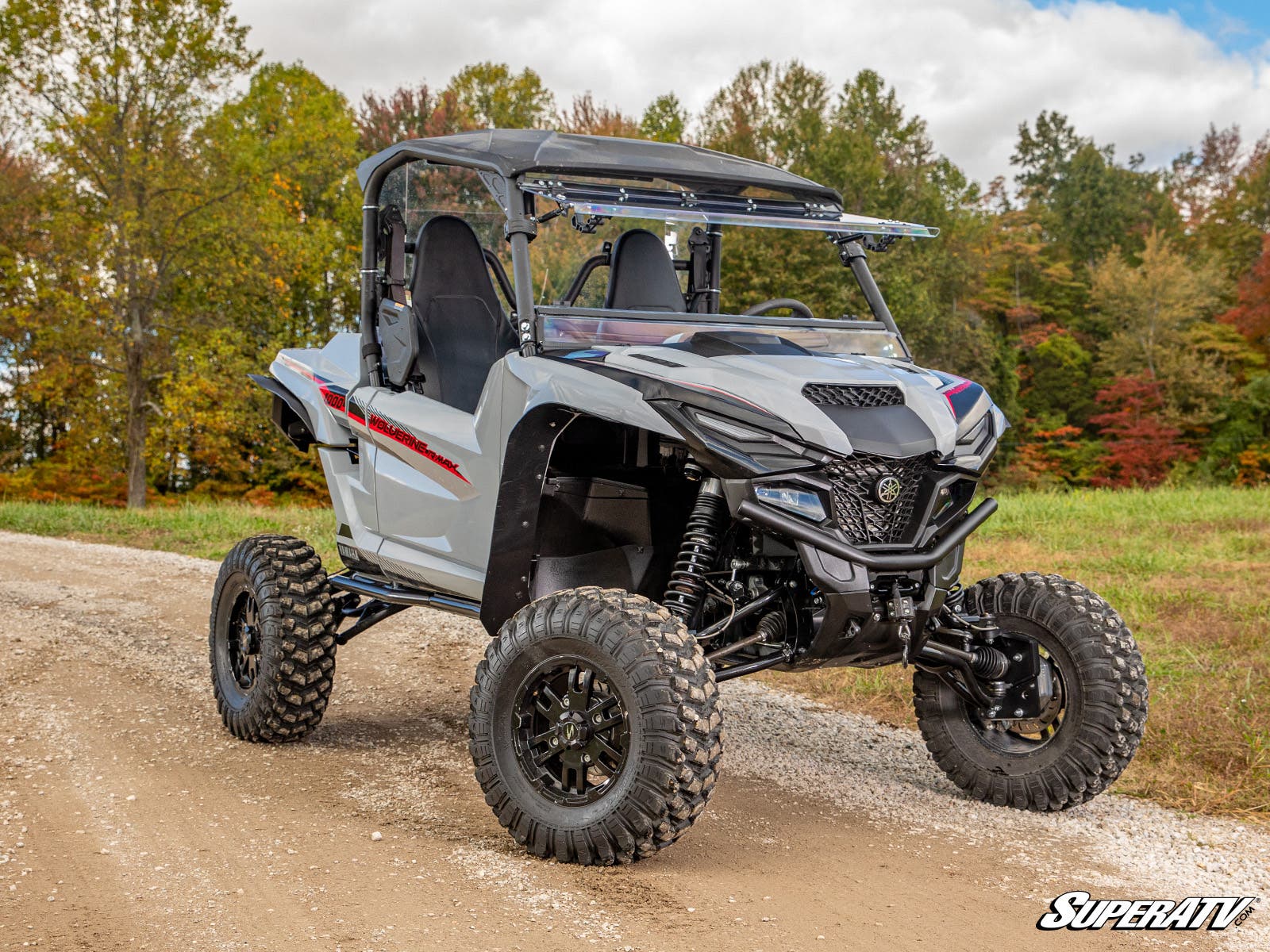

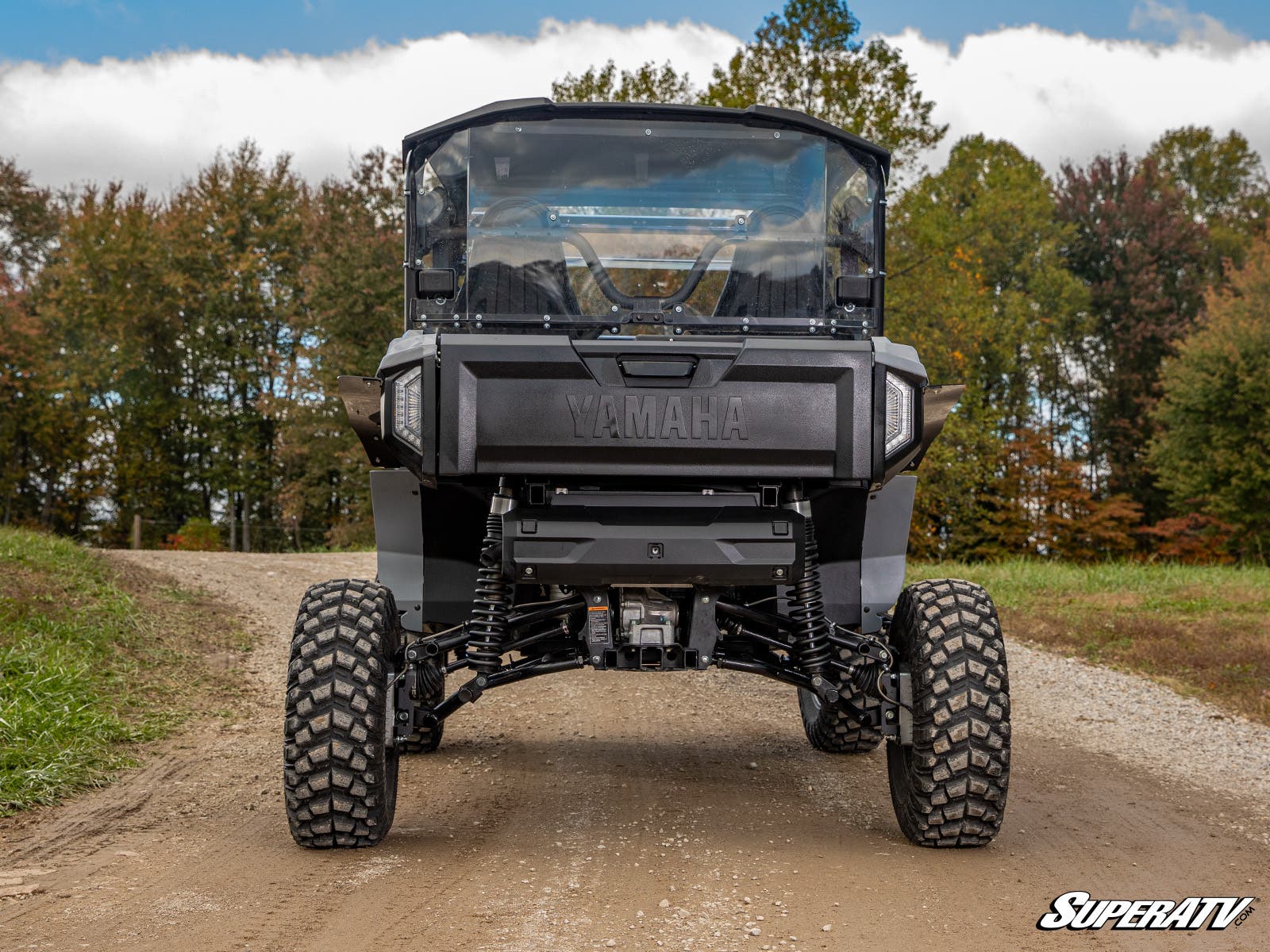

SuperATV Yamaha Wolverine RMAX 4" Portal Gear Lift

To avoid any fitment issues, please make sure to select the exact year, make and model of your vehicle. If you are unsure, please reach out to us for assistance prior to purchasing. Not that this part is built-to-order and NON-RETURNABLE. This part must be installed by a licensed professional to avoid any issues related to the complex installation

Why You’ll Love It

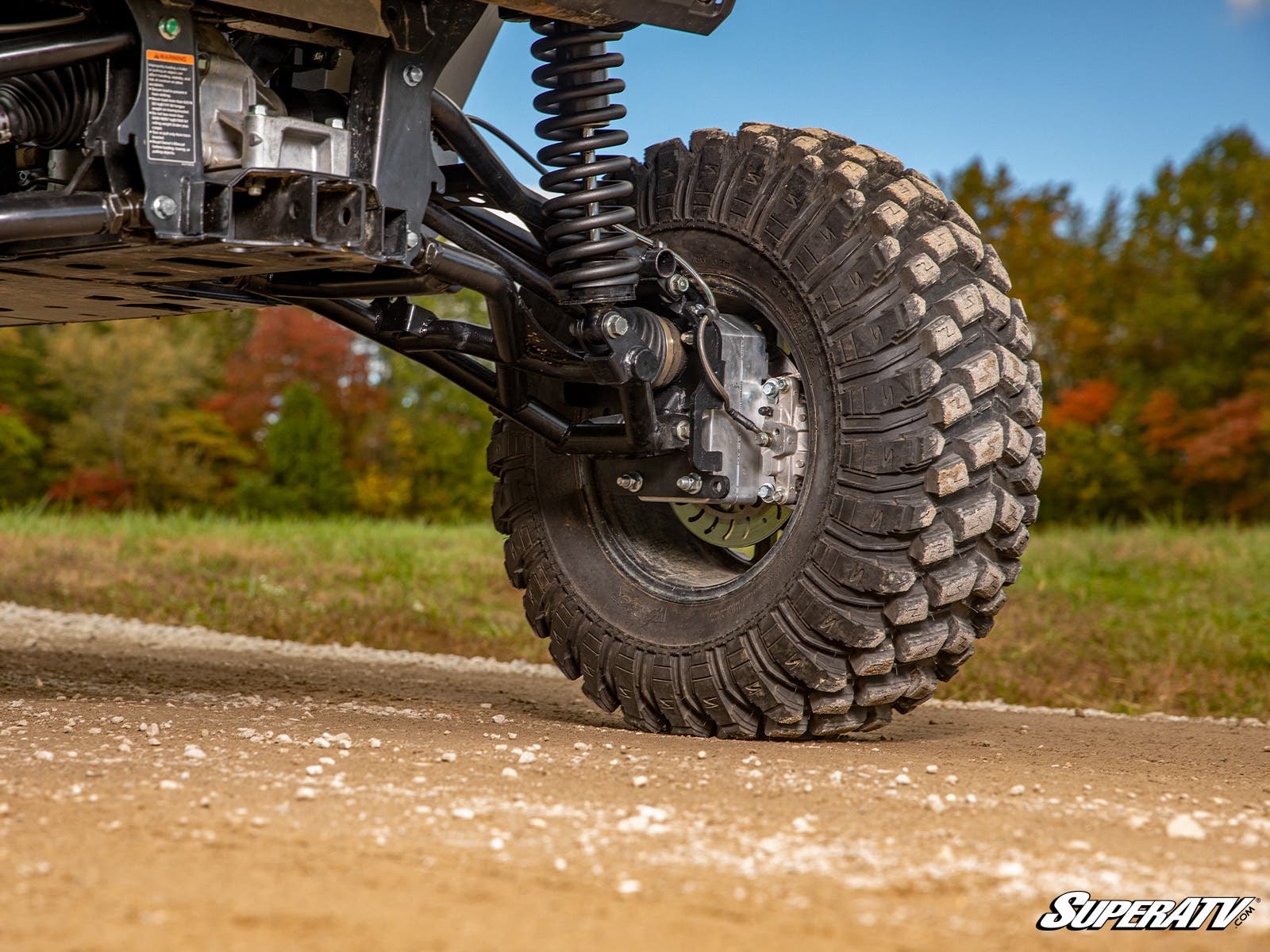

• 4” Portal Lift adds ground clearance directly at the hubs
• 15% or 30% Gear Reduction adds torque and relieves drivetrain stress
• Selectable Idler Setup lets you choose dual- or single-idler gearing
• Cast or Billet Housings let you choose the construction that fits your build
• Limited Lifetime Warranty protects your purchase

The Best Power and Performance
GDP Portals aren’t an average upgrade—it’s a massive boost to power and performance. With a 4” Portal Gear Lift from SuperATV, you get more ground clearance and torque—the perfect combo. The lift gives you room for big tires, and the gear reduction gives you the torque to turn them like stock. You’ve got the option to add a dual idler, too, which improves strength even more. Plus, it’s built with the quality that sets GDP apart.

What Is a Dual Idler?
Perfection takes time. After years of research and development, we’ve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don’t do a thing if they’re not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry’s toughest 9310 steel alloy. Didn’t think dual idlers mattered? With GDP’s quality and experience, they finally do.

Ride Anywhere You Want
No matter how you ride, GDP Portals can make your ride more capable. With a 15% gear reduction, you’re ready for any kind of riding. Hit the trails, creeks, dunes, and desert with tons of torque that won't slow you down. Go with a 30% gear reduction if you want to take wild rides with big tires. It’ll pull you through slop and rocks like they’re not even there.

A Gear Reduction That Protects Your Drivetrain
GDP Portals lower the wear and tear on your drivetrain despite giving you 4 inches of lift. How? Because the gear reduction is in the hub, everything before it works less. Your axles, differential, prop shaft, and transmission all benefit from it too. Not to mention, you maintain factory axle angles for even more durability.

Strength Throughout
Strength is the most important part of any big lift, including portals. A weak part might as well get left in the garage. That’s why our cast and billet aluminum housings are the thickest and strongest you can get. Combine that with 5/16” backing plates made from an advanced steel alloy, and our portals are unstoppable.

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood—gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

Advanced Gaskets, Seals, and Bearings
Our portals use:

• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

4" Portal Gear Lift Includes:

• (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
• (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
• (4) Specialized steel alloy backing plates
• (4) Steel caliper mounting plates
• Extended brake lines
• All required hardware, including recessed castle nut socket

2021-2024 Max Tire Size Recommendations for 4” Portal Gear Lift

2025+ Max Tire Size Recommendations for 4” Portal Gear Lift

FEATURES

• Available with billet or cast aluminum housing
• Dual idler gear configuration maximizes strength
• Cool, quiet, precision ground gears made from 9310 alloy billet steel
• Increases width by 4 in. per side (8 in. total)
• 1.5 in. diameter 4340 hardened steel drive shaft
• Housings use advanced gaskets that don’t let anything through
• Universal hubs can be set up to work with the following bolt patterns: 4/156, 4/137, 4/115, and 4/110
• Gear reduction reduces stress on your drivetrain
• Dual idler gear configuration adds a 3/4” front and rear offset—1.5” total extension
• Lighter than the competition
