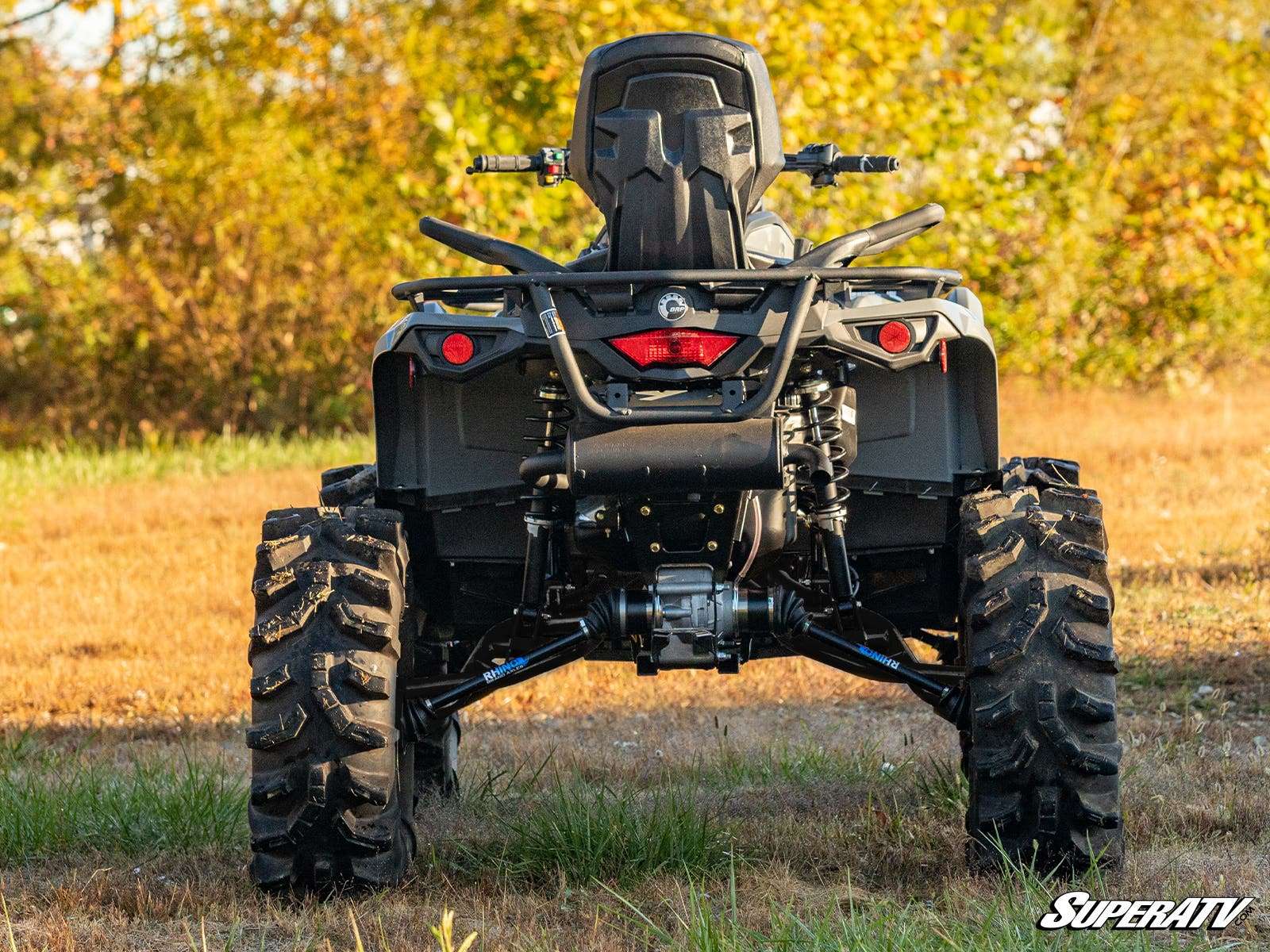

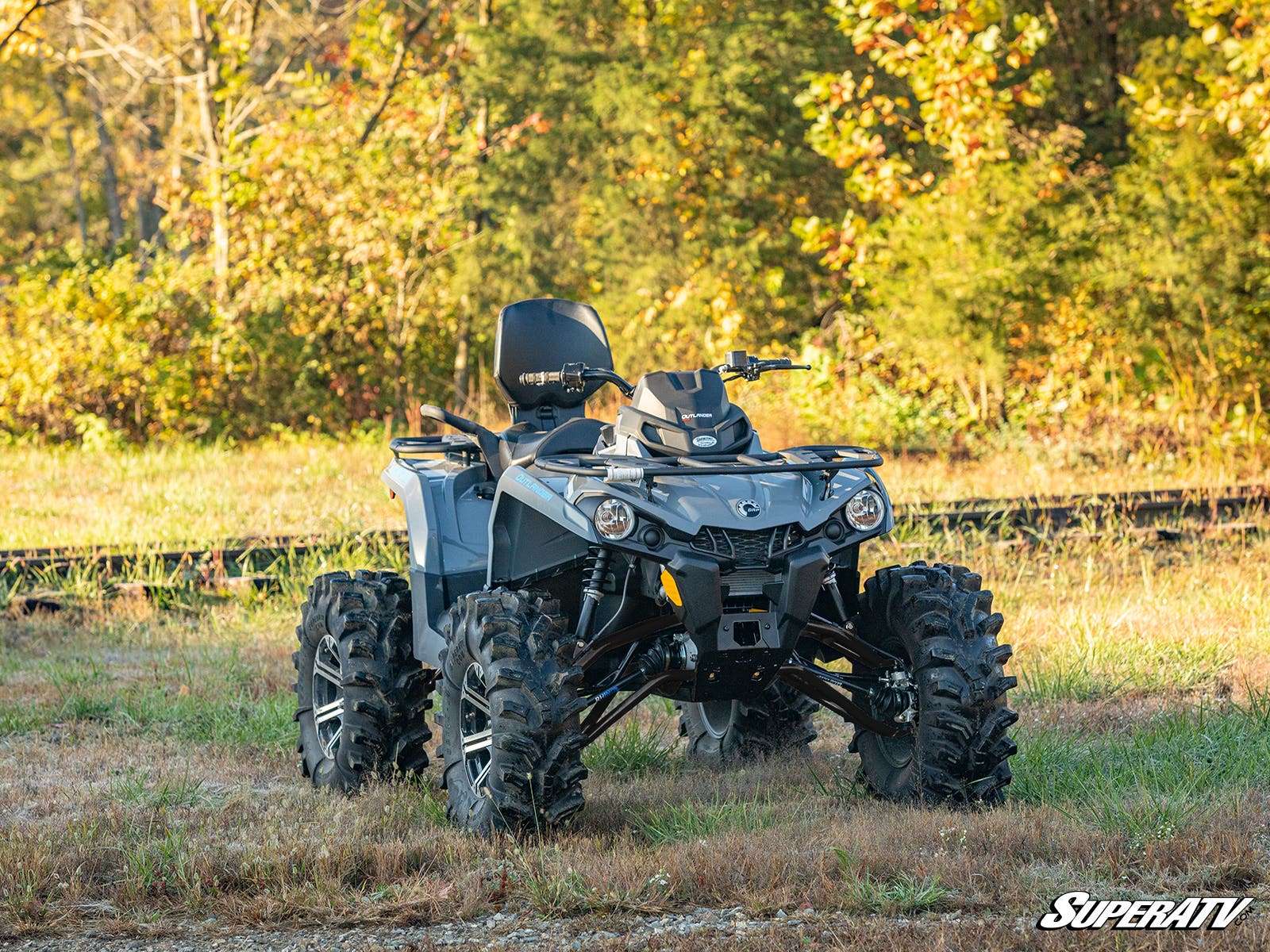

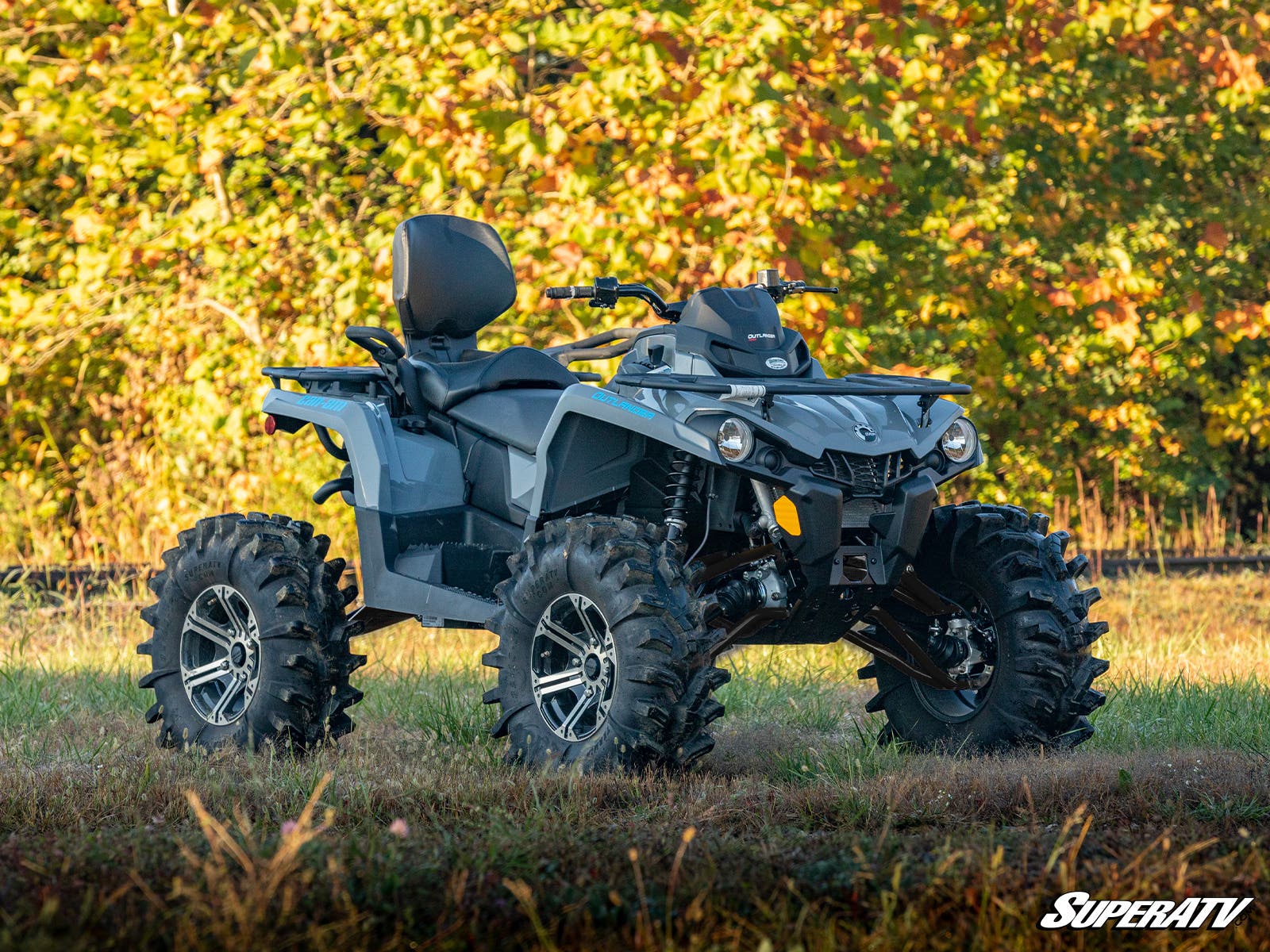

SuperATV Can-Am Outlander/Renegade 6" Lift Kit

Why You'll Love It

• True Big-Lift Geometry adds major ground clearance and extra tire clearance
• Extended Suspension Components support the taller, wider stance
• Heavy-Duty Extended Axles match the new suspension geometry
• Wider Track Width improves stability at the new ride height
• Lifetime Lift-Kit Warranty protects your purchase

Get Wild with a 6" Lift
When you put SuperATV's 6" Lift Kit on your ride, you'll be able to dominate any ride. With all-new suspension, a longer wheelbase, and room for massive tires, you'll turn heads and tear up bounty holes everywhere you go.

• A true 6" lift
• Fit up to 36" tires
• Increases your wheelbase by 5.5"
• Includes chromoly steel A-arms and trailing arms
• Comes complete with extended Rhino Brand Axles

More Clearance for Better Rides
Between the 6" lift and the 5.5" longer wheelbase, you get room for up to 36" tires. You'll have tons of ground clearances and loads of stability thanks to the extended wheelbase. Get crazy and take every bounty hole head-on. This lift kit makes it possible.

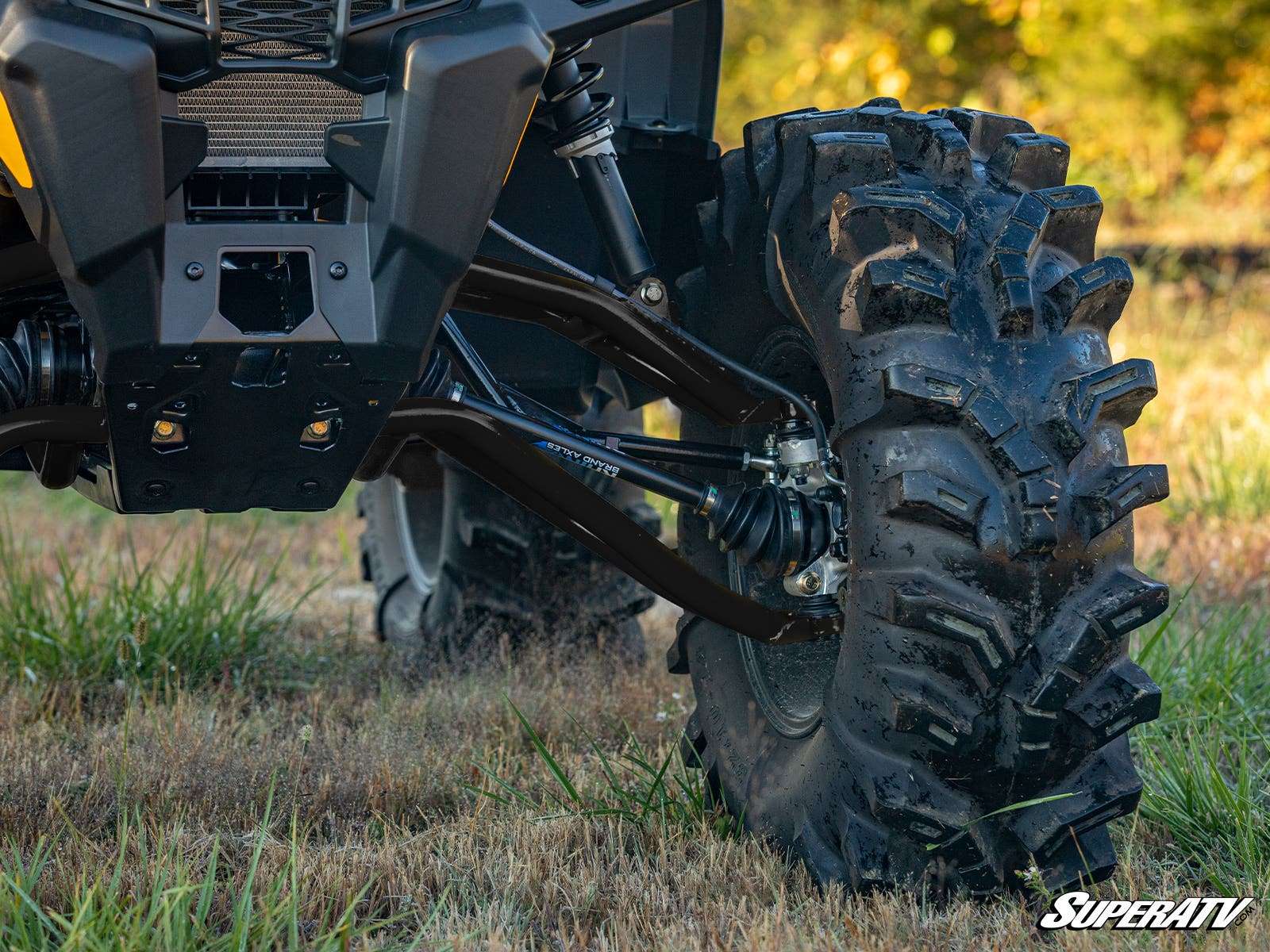

Chromoly Steel Suspension
A big lift kit needs beefed-up suspension. That's why our A-arms use 1.25" chromoly steel tubing and our trailing arms use 1.5" chromoly steel tubing. Together, they make sure your quad stays in one piece no matter how hard you hit the throttle.

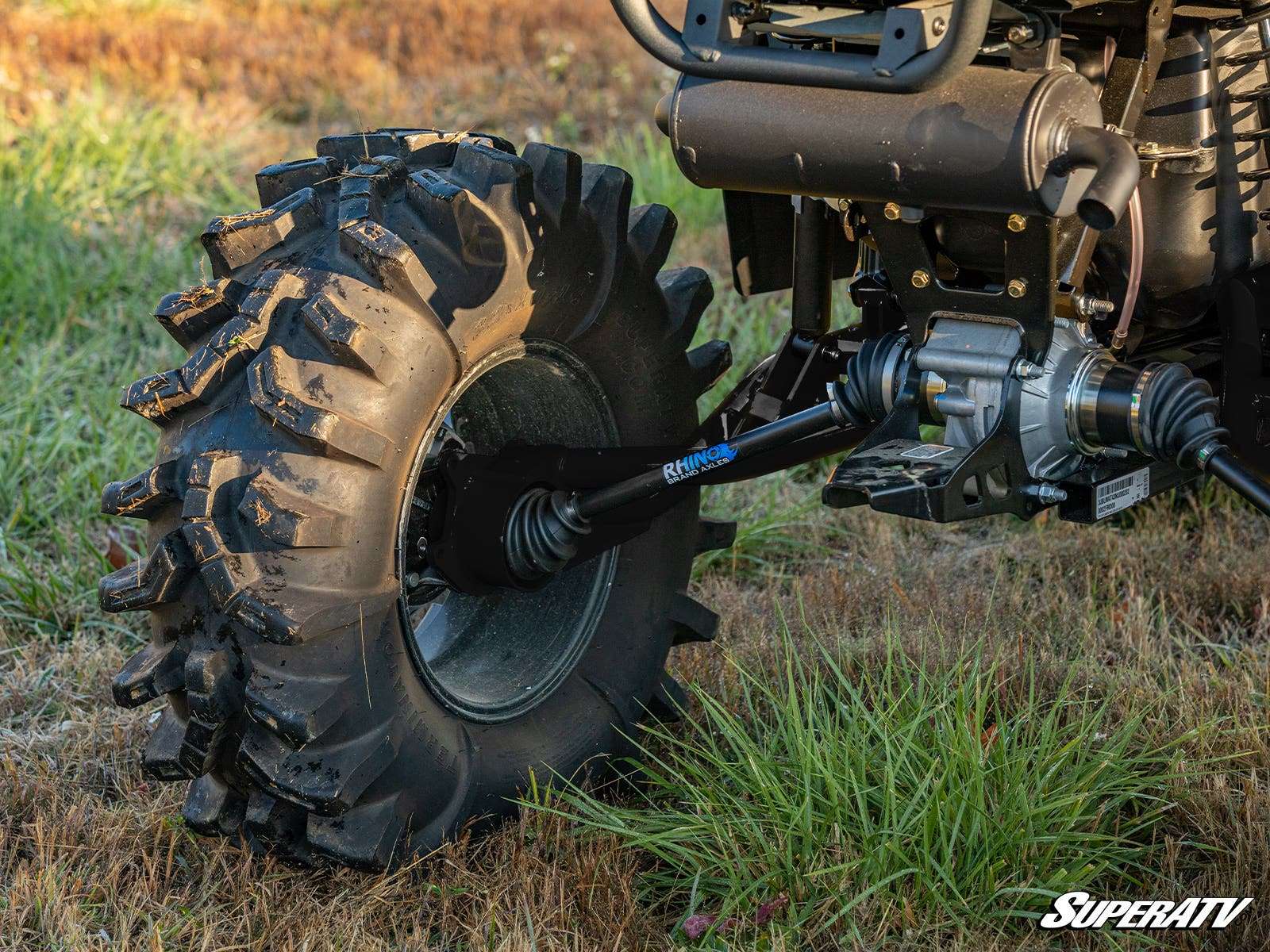

Comes with Rhino Brand Axles and Heavy-Duty Tie Rods
You get everything you need to get rolling. That includes heavy-duty, gusseted, Z-bend tie rods and chromoly steel Rhino Brand Axles. Our extended axles are purpose-built for high articulation and heavy machines so they won't hold you back.

Let SuperATV Do the Work—Preassembly Available!
Want to spend more time on the trails and less time in the garage? Purchase a set of SuperATV ball joints with your A-arms and we'll install them for you for free! We save you money and time so you can get back to doing what you love.

Keller Ball Joints
Keller Ball Joints have a two-piece design that eliminates the need for a snap ring. They thread directly onto your A-arms like a nut and bolt, making them nearly impossible to pull out. They're built with a tough chromoly steel stud and an advanced tool-steel body, so they're ideal for larger machines, bigger tires, and heavier rides. Plus, they're greaseable and rebuildable, so you can keep them running smoothly for the long haul.

Heavy-Duty Ball Joints
Our heavy-duty ball joints are designed with ultimate performance and convenience in mind. Whether you're doing flips or chasing hills, our proprietary blend of hardened 4340 VAR steel and zinc plating means this ball joint can take it. Our heavy-duty ball joints also come with easily-accessible grease zerks and an adjustable design. Extensive lab and field testing shows that our heavy-duty ball joints can withstand double the pressure of an OEM ball joint!

Super-Duty 300M Ball Joints
We took the strongest ball joint material on the market—300M grade steel—and combined it with our superior design engineering to make the strongest ball joint on the market. It comes with an easily accessible grease zerk and an adjustable steel-on-steel design, making it easy to keep your ball joints maintained and flexible. At 2.25x stronger than stock, you won't find a better ball joint.

FEATURES

• Run up to 36" tires
• Front A-arms: 1.25" thick DOM tubing, 1.5" forward offset high-clearance, Heavy-duty z-bend tie rods
• Rear trailing arms: 4" rear offset for a smoother ride, 1.5" DOM tubing for extreme strength, Extended trailing arms include all bearings
• (4) Rhino Brand Axles, extended length
• 5" increased track width

KIT INCLUDES

• Front high-clearance 1.5" offset A-arms (chromoly)
• Rear 4" offset trailing arms (chromoly)
• (4) Rhino Brand Axles
• Heavy duty Z-bend tie rod kit
• Extended brake lines
• All hardware and installation instructions
