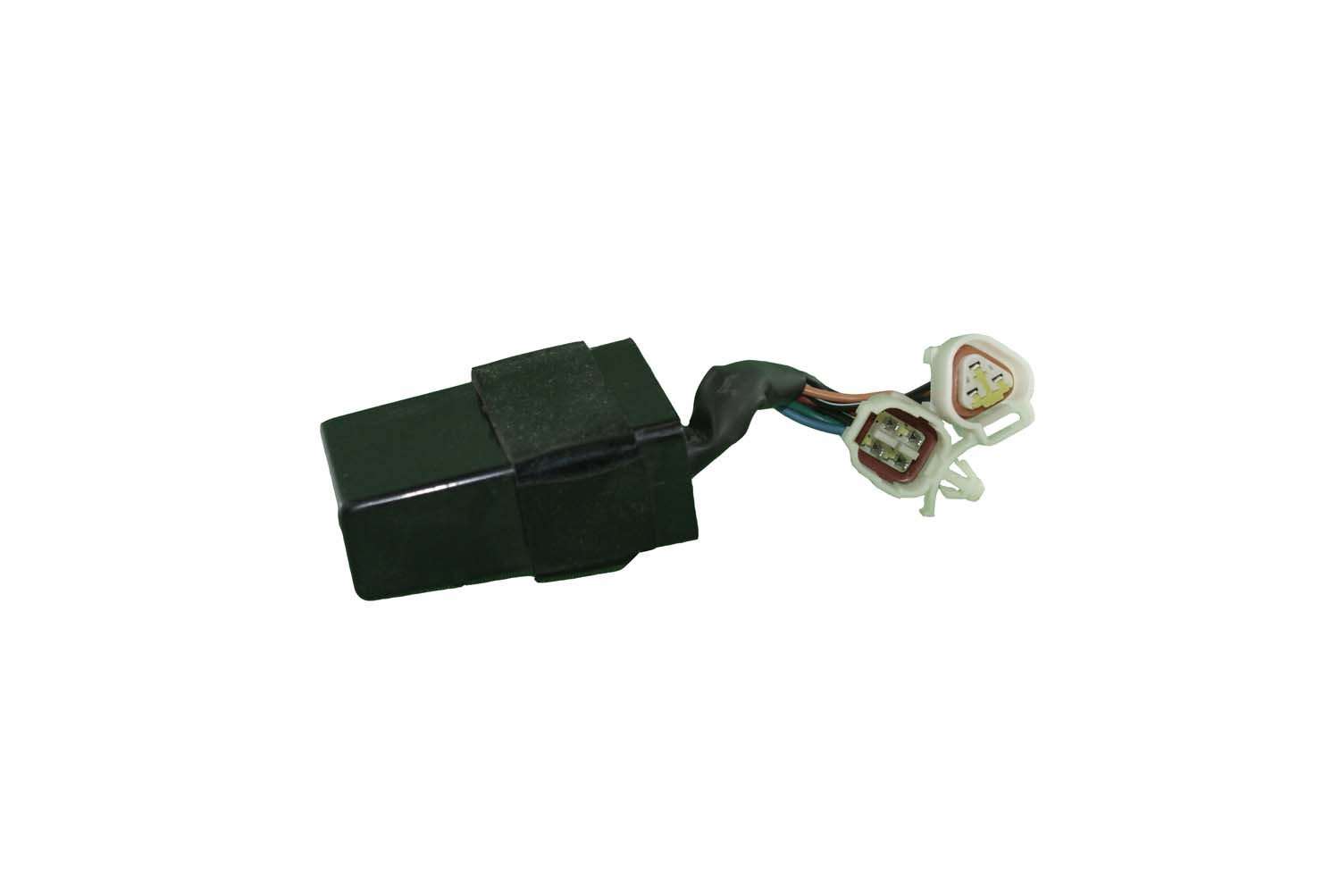

MOGO Parts CDI Box 4S, 229.5-250cc Baja/Jianshe (2 Plug)

If your unit is not starting, does not produce spark, misfiring and/or running rough it could very well be your CDI box. A typical CDI (Capacitor Discharge Ignition) module consists of a small transformer, a charging circuit, a triggering circuit and a main capacitor. The majority of CDI's supplied on new vehicles and by aftermarket suppliers lack the proper quality internals to ensure your CDI is reliable. Many owners have had to replace CDIs after only a few rides on a brand new unit due to this fact. MOGO Parts quality internals ensure that when you replace your CDI you will be improving your ride to get the reliability you should have had in the first place.

SPECIFICATIONS

• Pins: 7
• Type: Alternating Current (AC)
• Compatible With: 12v Systems
• Length: 2.75"
• Width at Bottom End: 1.75"
• Width at Wire End: 1 1/8"
• Conintuous Ignition: <250R/Min
• Range: 250R/Min - 11000R/Min
• Working Temp Range: -30 ~ 60C
• Connector Type: 2 Connector Version
• Connector #1: 4 Pin, Female Connector
• Connector #2: 3 Pin, Triangular Shape (Female Connector)
• Capacity: 1.5UF
• Wire Length: 5" (approx)

NOTE: All specs and compatibility must be confirmed with your owners manual prior to ordering/installing. Off-road use only.
