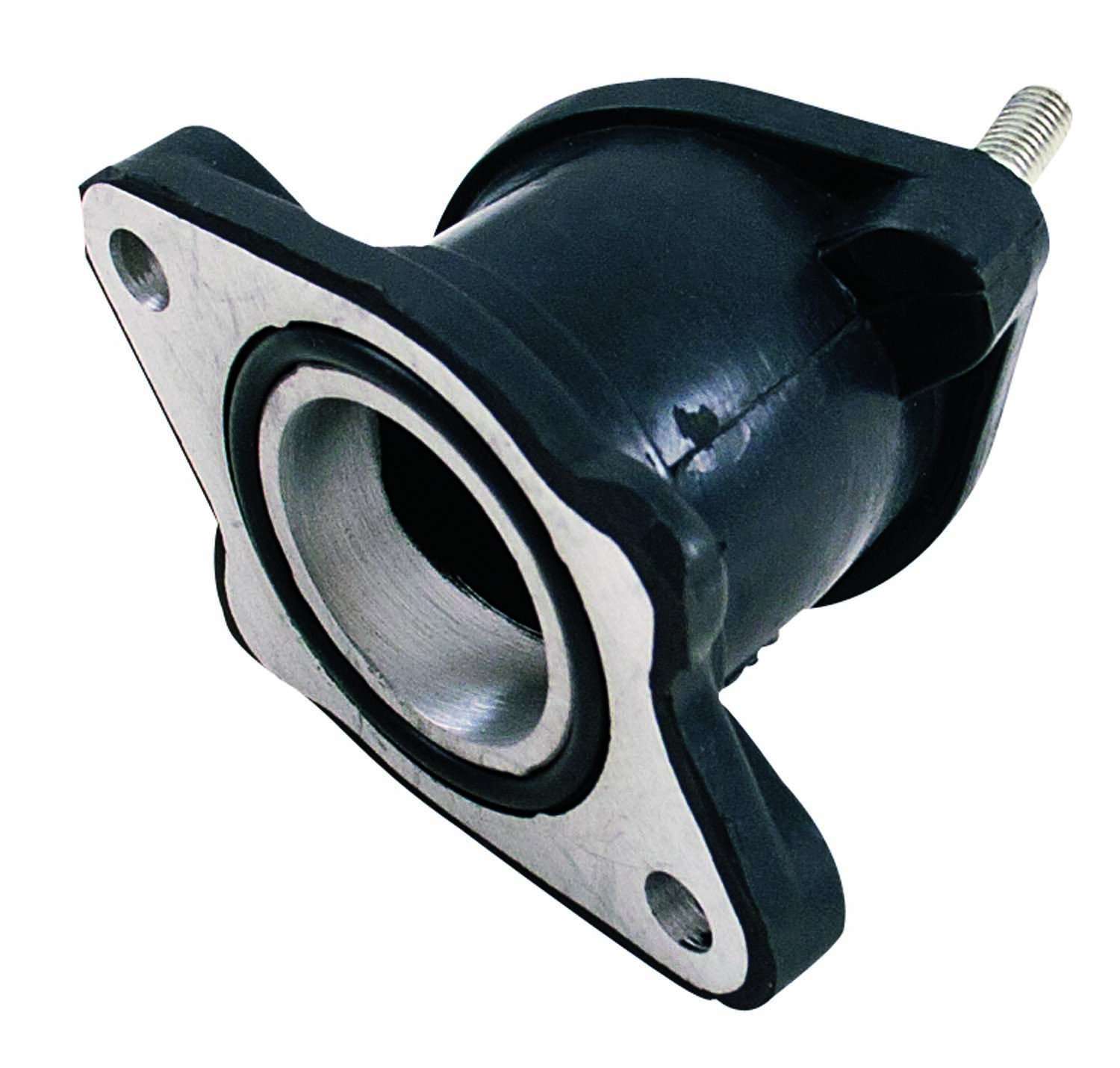

MOGO Parts Carburetor Boot 27mm 66 Degree (Rubber)

Having performance issues? Many vehicles were made with low quality rubber intake manifolds that dryout and crack over a short period of time. Even the slightest crack in the intake manifold will cause your vehicle to operate poorly. Always be sure to check your intake manifold when changing carburetors and/or when performing a tune-up on your vehicle.

SPECIFICATIONS

• Material Type: Rubber/Metal
• Intake Diameter (I.D), Engine Side: 27-28mm
• Mounting, Engine Side: 2 Bolt Holes
• Mounting, Carb Side: 2 Threaded Studs (Standard Pitch 1.25)
• Bolt Hole Spacing: 63mm/2.5" (Center to Center)
• Stud Bolt Spacing: 48mm/2" (Center to Center)
• Angle: 66 Degrees (Approx.)
• Other: Rubber/Metal Combo, O-Ring Included
• Thread Type: Standard
• Thread Pitch: 1.25

INCLUDES

• O-Ring
• Studs (2)

NOTE: All specs and compatibility must be confirmed with your owners manual prior to ordering/installing. Off-road use only.
