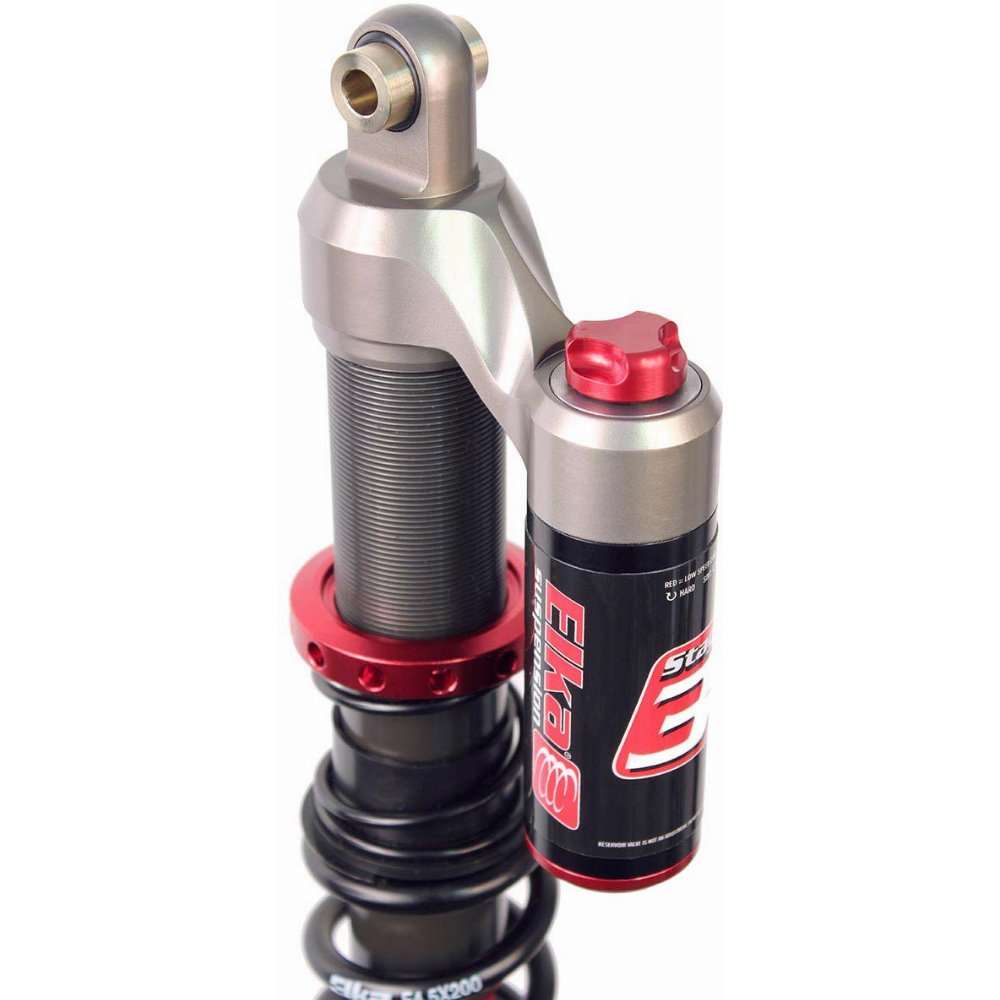

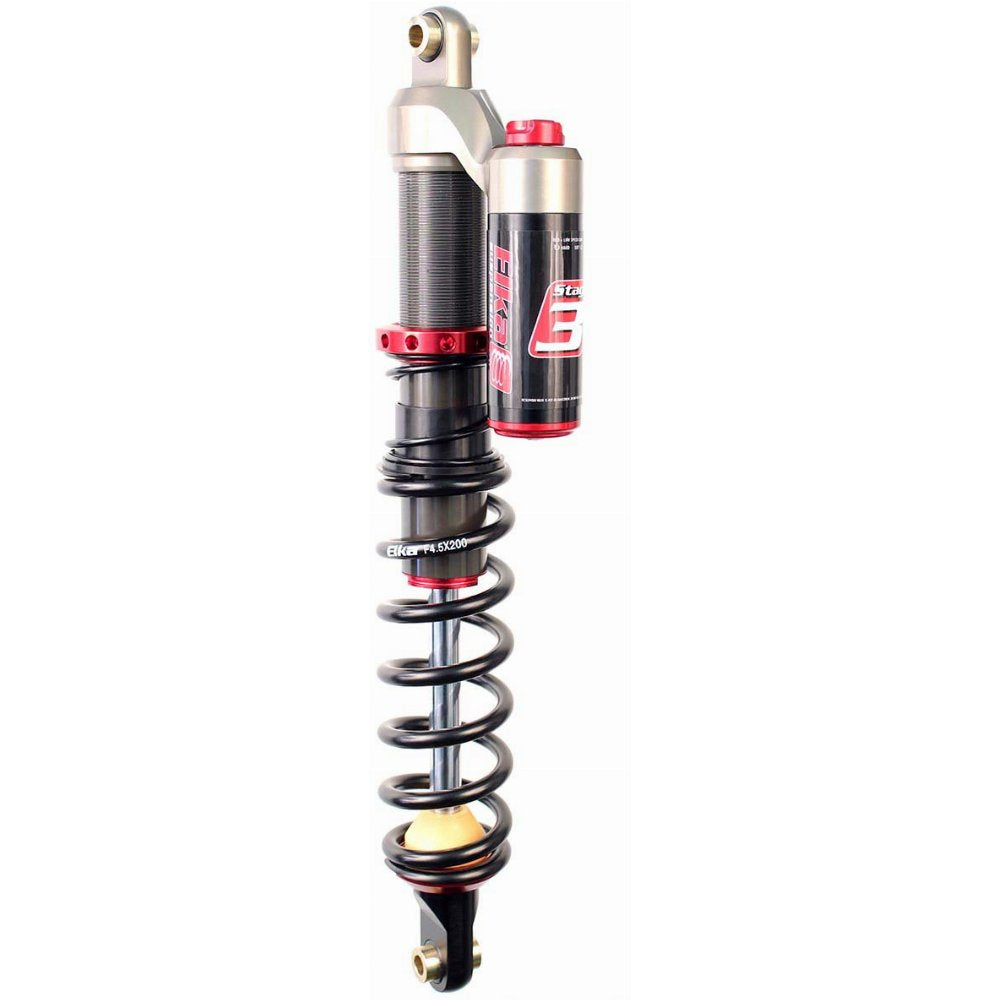

Elka Suspension Stage 3 ATV/UTV Shocks

The Stage 3 model is derived directly from our top-end Stage 5 model, with which it shares most of the same components. It features a single external compression adjustment knob that controls the low-speed compression damping that is combined with an internal high-speed blow-off circuit which relieves peak pressure upon impacts to achieve race-level performance in a package that is more accessible and easier to adjust.

BENEFITS

• Designed for intensive applications and spirited riding
• Turns your sports-utility quad into a more capable machine that can carry more speed over rough terrain and bumps
• Perfect choice for riders looking for a reservoir-type shock with simple but effective adjustability
• Provides increased stability, more traction and better protection against bottom-out

AVAILABLE CONFIGURATIONS

• Front shocks, sold as a pair
• Rear shocks for independent rear suspension models, sold as pair

LOW-SPEED COMPRESSION

Allows fine-tuning of the damping resistance when the shock is being compressed slowly. This adjustment controls body roll when cornering, rear-end squatting under hard acceleration, front-end diving when braking, riding over whoops at moderate speed, undulations and elevation changes in the terrain. To use, turn the red knob clockwise to increase damping resistance, therefore making the suspension stiffer or turn counter-clockwise to reduce damping resistance, therefore making the suspension softer.

THREADED SPRING PRELOAD

Lets the rider fine-tune the initial force applied on the springs and precisely balance the weight distribution across the front and rear wheels while setting up the ride height (ground or chassis clearance) and to lower or raise the vehicle to adapt to various situations or to suit your personal preference. To use, turn the preload adjustment ring clockwise (from top of the shock) to increase preload and raise the vehicle or turn counter-clockwise to reduce preload and lower the vehicle.

HIGH-FLOW TECHNOLOGY

• Huge oil ports providing massive oil flow
• Equivalent flow capacity upon compression and rebound stroke (1:1 ratio)
• Low restriction of the oil flow = plush, predictable & consistent damping action
• Less stress on internal parts = more durability and longer intervals between servicing

ULTRA-LIGHTWEIGHT DESIGN

• Components that are precision-machined from aeronautical grade billet aluminum
• Sleek, lightweight reservoir with recessed cap to better protect the nitrogen valve
• Ultra-light spring design with bigger outside diameter and less coil turns, providing important weight reduction while maintaing the reliability and intuitive ride-height adjustability of coil springs vs. air springs
• Reduced weight and friction = less stiction and lower operating temperature = more resistance to fading
• Crossover spacers design that reduces the accumulation of debris, therefore reducing wear on the body
• Optional lightweight composite shock protectors to provide further protection against roost and other debris
• Neutral look and colors that blends well with any quad model and livery

LOW-FRICTION INTERNALS

• Hard-anodized aluminium internal floating piston for low operating temperature
• Aluminum body that dramatically reduces overal weight and better dissipates heat
• Hard-anodized to very tight tolerances to improve durability and further reduce friction
• Special thread design on the aluminum body that provides more surface and less friction to making preload adjustments much easier

INTERNAL HIGH-SPEED BLOW-OFF CIRCUIT

• Helps relieve peak pressure upon impacts
• Factory-set, no need to adjust
• Provides race-level performance without the added complexity of a separate high-speed adjustment

HARD-ANODIZED PARTS

• Provides a smooth surface that helps reduce internal friction inside the body
• More durable finish than regular sulphuric anodization generally used on lower-end products
• Hard chrome-plated shafts

TRIPLE SEALING SYSTEM

• Seal head design is composed of external dust wiper, high-pressure step-seal and o-ring
• 46mm shocks also feature a double dust wiper to further prevent debris for entering the shock
• Low-friction o-ring material is certified resistant to greater temperature changes
• High material memory that helps maintain sealing properties in harsh conditions
• All sealing components are premium quality, carefully selected for their optimal balance of performance and durability

PROPRIETARY OIL BLEND

• Fully synthetic proprietary blend
• Ultra-low friction light viscosity grade
• Ultra-resistant to high temperature
• Extended usable life
