Description

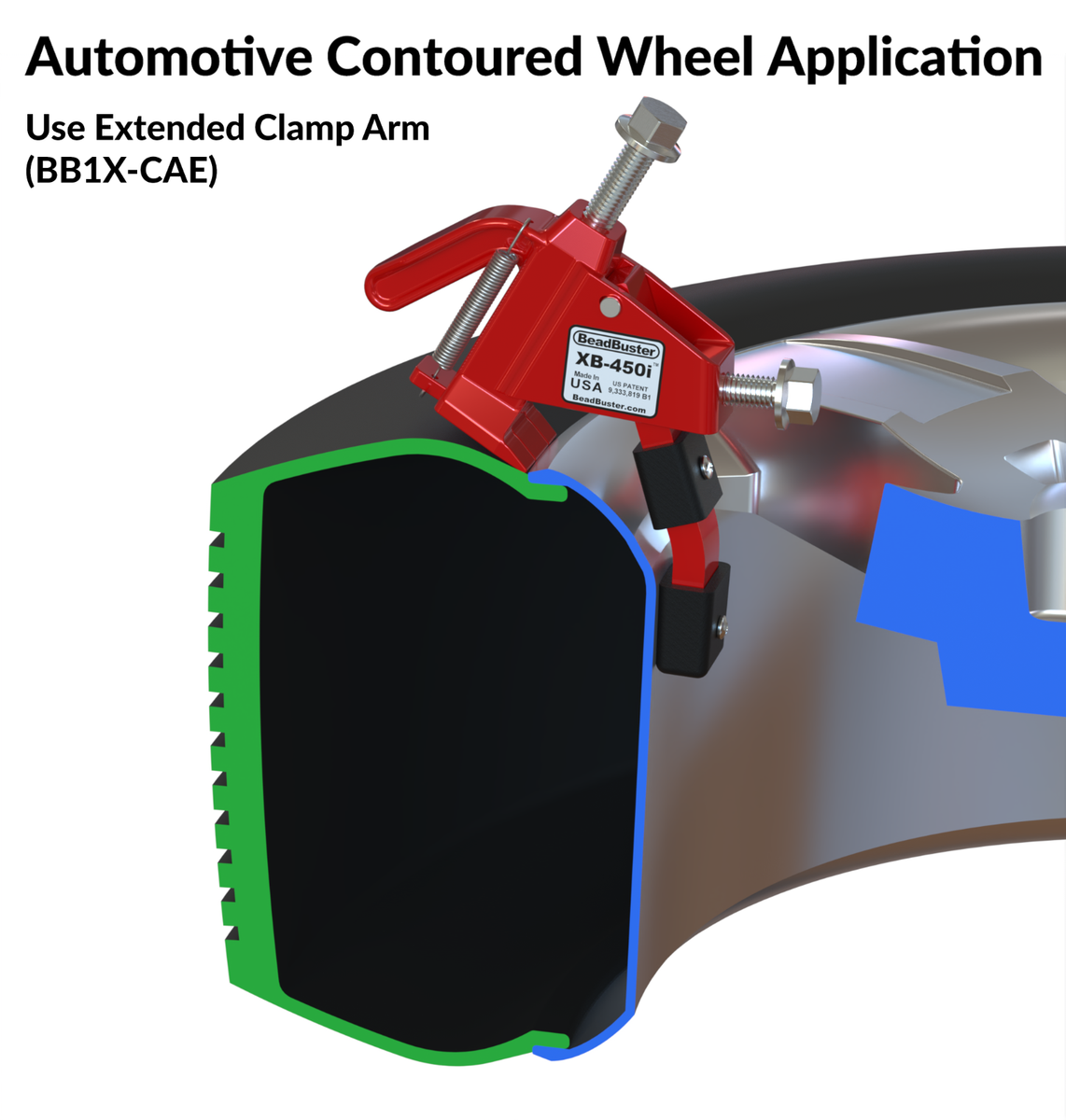

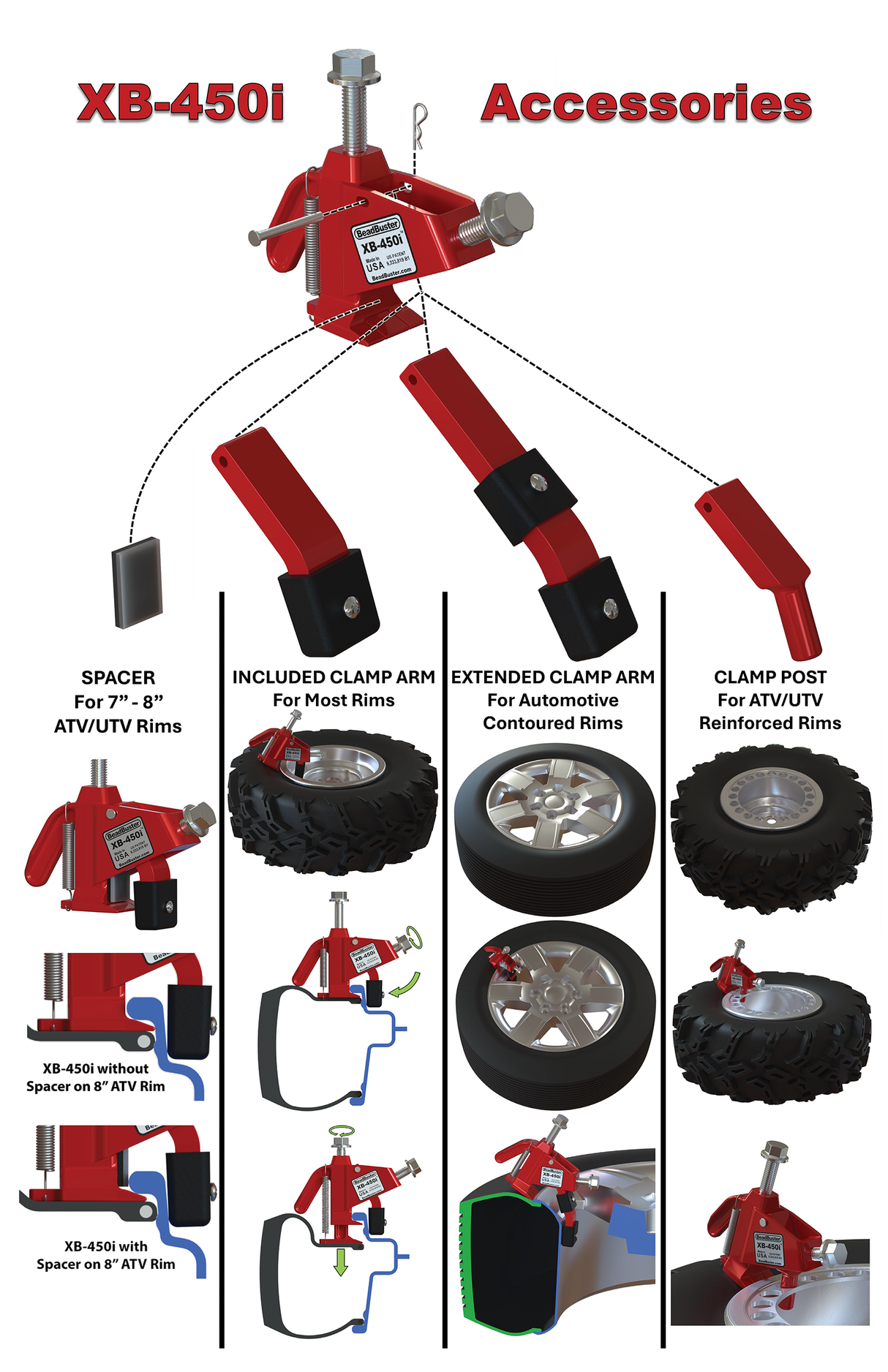

The new design updates include Premium Investment Cast construction from hardened 4140 Chrome-Moly Steel, custom Grade-8 Bolts with crowned tips, and double female ram thread length (1"). These improvements address weld and thread stripping failures that some customers experienced with the legacy design. The removable clamp arm can be swapped with other accessory clamp arms for specialty applications.

With the home mechanic and trail rider in mind, it was specifically designed for difficult-to-remove ATV tires, but we soon realized that it worked just as well on just about every kind of tire there is. No adjustment is needed for different tire/wheel sizes. The portable bead breaker is small and perfect for stashing in your glove box or tool box. Save time, money, and frustration by quickly and easily changing your own tires whenever, and wherever you wan

FEATURES
  • Tool Body & Ram Foot made from Hardened Chrome-Moly Steel (AISI 4140, HRC 30)
  • Investment Casting Tool Body & Ram Foot
  • Custom Grade 8 Bolts
  • Crowned Bolt Tips prevent mushrooming and thread damage
  • Custom Alloy Steel Clevis Hinge Pin
  • Polyester Powder Coat Finish
  • Padded Clamp Arm (will not scratch or dent rims)
  • Patented Design
  • Premium Build Quality, 3 Year Warranty
  • Specifications:
    • Weight: 3.0 lbs
    • Size: 7″ x 5.8″ x 1.9″
    • Max Rim Lip Width (clamp opening): 1.70″
    • Max Rim Lip Thickness: 0.63″
    • Rim Diameter: Any
    • Rim Width: Any
    • Rim Material: Any
    • Max Tire OD: 32"
    • Max Ram Extension (throw): 1.438″ (see diagram)
    • Max Clamp Force: 4.2 tons
    • Max Ram Force: 9.0 tons
  • For use with:
    • Any 1-Pc Wheel that uses a 32" or smaller Tire
    • ATV's, UTV's (aka. Side x Side's)
    • Motorcycles: Street & Dirt, Scooters
    • Cars: Passenger & Race Cars (ie. Sprint, Dirt Track)
    • Trucks, 4x4's, Jeeps
    • Trailers
    • Lawn Mowers, Garden Tractors
    • Go Karts, 1/4 Midgets
    • Light Aircraft
Technical Specifications
MFG. Part Number
XB-450i
