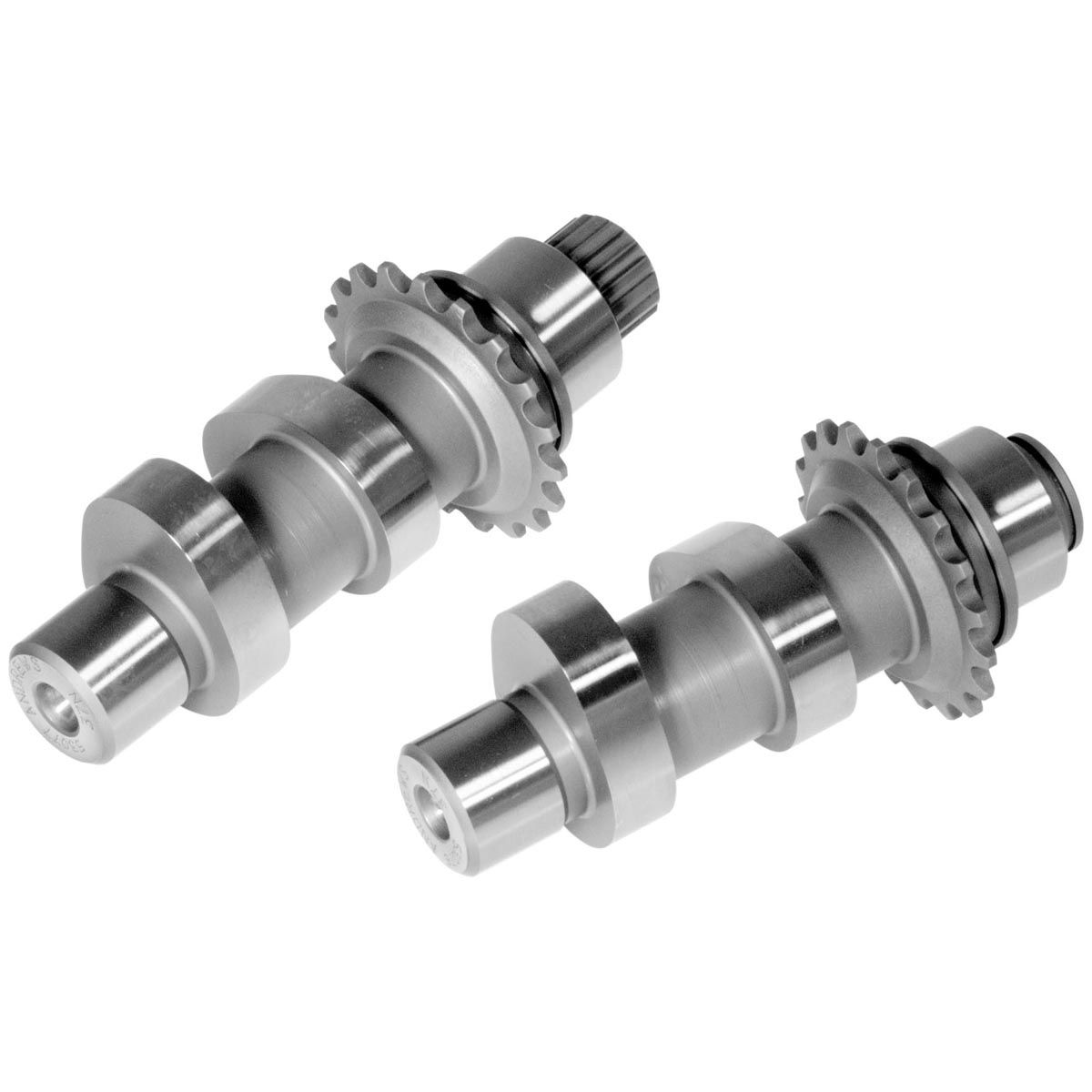

Andrews 54H Chain Drive Camshaft

FEATURES

• Splined chain drive camshafts
• Kits include: cams, 1 roller bearing and 1 ball bearing (bearings only included in 1999-2006 models)
• Designed for use with stock Harley-Davidson hydraulic lifters
• Can be installed on both carbureted and fuel injected models
• Specially designed for 96 and 103 engines with CR up to 10:1
• 2200-5600 RPM range
• High lift springs required on 1999-2004 engines
• NOTE: Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance
• Intake Opening (degrees): 16
• Intake Closing (degrees): 42
• Exhaust Opening (degrees): 43
• Exhaust Closing (degrees): 15
• Intake Duration (degrees): 248
• Exhaust Duration (degrees): 252
• Intake Lift (in): .550
• Exhaust Lift (in): .550
