SuperATV Honda Talon 1000R 4" Portal Gear Lift

To avoid any fitment issues, please make sure to select the exact year, make and model of your vehicle. If you are unsure, please reach out to us for assistance prior to purchasing. Not that this part is built-to-order and NON-RETURNABLE. This part must be installed by a licensed professional to avoid any issues related to the complex installation

Why You'll Love It

• 4" Portal Lift adds ground clearance directly at the hubs
• 15% or 30% Gear Reduction adds torque and relieves drivetrain stress
• Selectable Idler Setup lets you choose dual- or single-idler gearing
• Cast or Billet Housings let you choose the construction that fits your build
• Limited Lifetime Warranty protects your purchase

GDP Portals Will Transform Your Ride
Your ride style is as unique as you are, which is why we don't make "one size fits all" portals. With SuperATV's Gen 3 4" Portal Gear Lift, you've got options for your ride. First off, you tell us which gear reduction you want—a 30% reduction is perfect for big tires and even bigger torque, while 15% is ideal for smooth, precise trail riding. You can opt for dual idlers for maximum strength and choose between cast or billet aluminum housings. No matter what you choose, you get a portal gear lift that just can't be beat.

What Is a Dual Idler?
Perfection takes time. After years of research and development, we've made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don't do a thing if they're not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry's toughest 9310 steel alloy. Didn't think dual idlers mattered? With GDP's quality and experience, they finally do.

Perfect for Any Rider
You haven't truly experienced mud if you haven't tackled the bogs while riding on GDP portals with a 30% gear reduction. Getting slowed down by thick, peanut-butter mud will be a thing of the past with the torque boost that GDP gives you. Our 30% gear reduction is great everywhere, but if you want the fastest lifted ride you can get, go with 15%. It gives you punchy power and a higher top speed.

A Gear Reduction That Protects Your Drivetrain
A huge advantage of portal gear lifts is how they put the lift right in the hub, which doesn't put additional or unnecessary stress on your drivetrain. This lets you ride harder and tackle bigger obstacles without messing up your machine's most vital parts.

The Strength You Need
We've done enough research on portals to understand what can make or break them. That's why you won't find housings or backing plates stronger than what we use for our GDP portals. You get the choice of cast or billet aluminum housings to go with your 5/16" advanced alloy backing plates. No matter what, you get unmatched strength and reliability.

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood—gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

Advanced Gaskets, Seals, and Bearings
Our portals use:

• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

Reinforce Your UTV with a Frame Stiffener
Your ride is a powerhouse of a UTV. It's built for high-octane action and hard rides. It's also tough enough to handle 4" portals. But, if you add another lift, big tires, and heavy passengers, there's a chance you could bend your frame. So for you go-big-or-go-home types, we recommend adding a heavy-duty steel frame stiffener to your ride. It'll make sure your ride stays good as new.

4" Portal Gear Lift Includes:

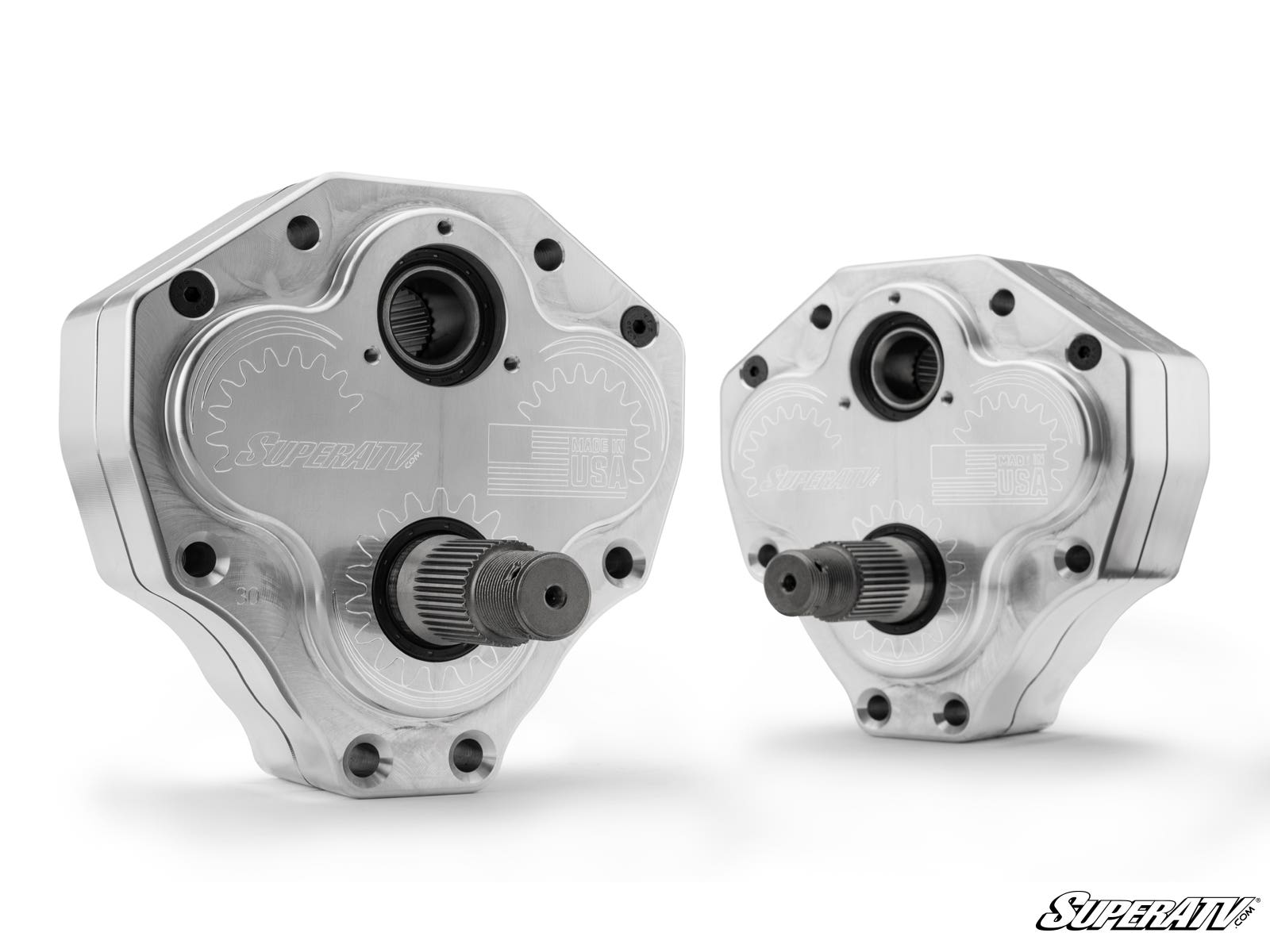

• (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
• (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
• (4) Specialized steel alloy backing plates
• (4) Steel caliper mounting plates
• (8) Caliper mounting plate shims
• (2) Steel steering arms
• (2) Rear adapter plates
• (2) Preinstalled lower ball joints
• Extended brake lines
• All required hardware, including recessed castle nut socket
• Frame stiffener (must select)

Portal Gear Reduction Recommendation

FEATURES

• Available with billet or cast aluminum housing
• Dual idler gear configuration maximizes strength
• Cool, quiet, precision ground gears made from 9310 alloy billet steel
• 1.5 in. diameter 4340 hardened steel drive shaft
• Housings use advanced gaskets or O-rings that don't let anything through
• Universal hubs can be set up to work with the following bolt patterns: 4/156, 4/137, 4/115, and 4/110
• Gear reduction reduces stress on your drivetrain
• Dual idler gear configuration adds a 3/4" front and rear offset—1.5" total extension
• Lighter than the competition
